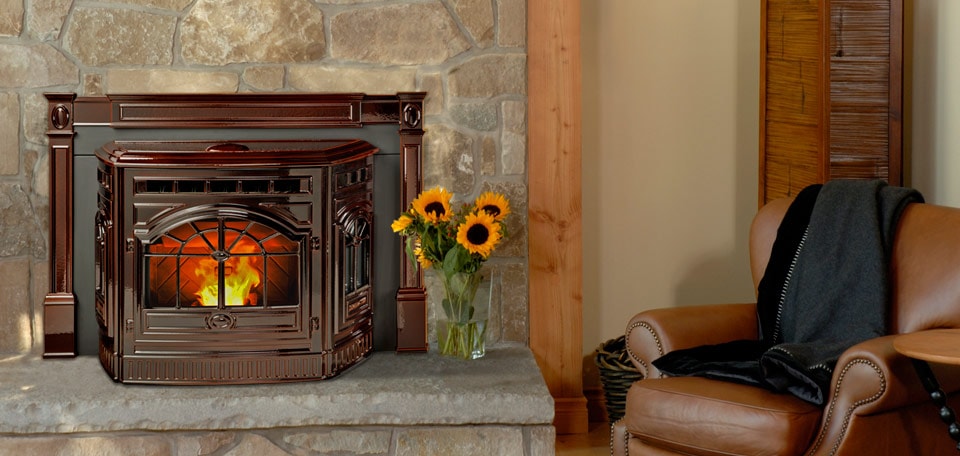

Quadra-Fire Castile Pellet Insert

Quadra-Fire Castile Pellet Insert

The beautiful Castile Pellet Insert delivers enough warmth to heat most living rooms, great rooms and family rooms. Even better, it’s efficient, self-lighting and easy-to-use. Define your favorite room; let the Castile provide the style and comfort.

  • 30,600 BTUs — heats 700 to 1,800 square feet, based on climate and home efficiency
  • EPA certified, with low emission levels of 1.1 grams per hour
  • 45lb hopper capacity
  • Patented feed system for jam-free operation
  • Easy-clean firepot
Downloads

Product Brochures

Model Specifications

Castile Insert

Width: 32-1/4"
Height: 24-3/4"
Front Width Minimum Firebox Opening: 28-1/8"
Height Minimum Firebox Opening: 21-1/4"
Depth Minimum Firebox Opening: 13-1/8"
Back Width Minimum Firebox Opening: 23-5/8"
Extension Onto Hearth: 10-3/8"
Fuel Type: Pellet
Peak BTU/hr Output: 9,400 - 30,600
Heating Capacity: 700 - 1,800 sq ft
Hopper Capacity: 45 lbs
Viewing Area: 106 sq in
Efficiency: 70.4%
Emissions: 1.1 grams/hour
